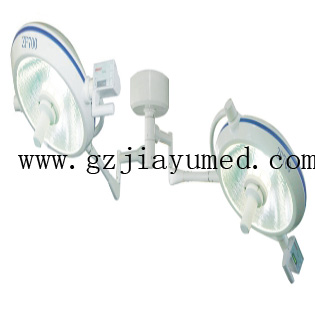

ZF700/700Z Shadowless Operating Lamp (Common Arm)



★ZF series Operating shadowless lamp can widely be used in diversified  operation occasion to meet the demand of the illumination, and it is the ideal illumination instrument of the modern operating theater.

★The Whole reflection optical system is made by CAD/CAM technology, its illumine depth is up to 700mm ;by using color temperature compensation technology, the color reversion is uprised, and it is more suitable  for the illumination of the complex surgery such as encephalon surgery and thorax surgery.

★Micro computer digital control, with 8 shifts luminance for selection and it offers illuminance memory funcition and wide voltage working speciality, cam work stably under AC 150V~250V, with strong anti-jamming capacity.

★Full close streamline lamp body design completely meets the demand of the sterilization and high standard of laminar flow purification in the operation room.

★Water ripple panel is made of German PC (anti-bullet plastic) by injection moulding, makes the light softer and more reliable.

★Focusing system has a delicate structure, and easy to change bulb and the ceramic seat; detachable handle cover can take high temperature (≤134°) sterilization treatment.

★With back up bulb automatic switch function, when the main bulb was burnt, auxiliary lamp will be lighted in ½ second. There’s failure indication in the handle control panel, to recommend the bulb to be changed after operation.

★Offering soft start up unit, extending the serve life of the bulb effectively. Adopting the imported long life halide-tungsten bulb, the bulb life can be up to 1000 hours.

★All the key parts use the world famous products, ensure stable and reliable operation; flame retardant level material can endure high temperature and safe, meets IEC norm.

★Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stablely. 360  universal design can satisfy various needed height and angle in the operation.

★Top-bulit (bottom board ) power supply system, avoid troubles in installation of hang-on-wall control box.

Technical Data:

Llluminance (Lux)	80000~150000/80000~150000
Color temperature (K)	4000±500
Size of light field(mm)	160～280
Illuminance depth( mm)	≥700
Brightness adjustment	8-stage continuous light adjustment.
Total irradiance	426W/m²
the ratio between irradiance and illuminance	≤3.3mw/ m²lx
Colour reduction index	94
power supply voltage	～220V/50Hz
Input power (w)	400
24V bulb power(w)24v	150/150
automatic shift of main bulb and satellite bulb	√
Lowest height of installation	2600mm
